HONDA CIVIC MANUAL ANTENNA INSTRUCTIONS

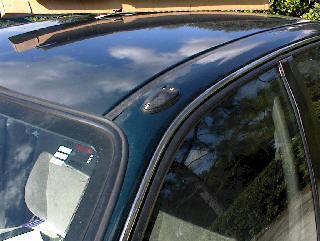

1.  Remove two screws securing antenna base to roof.



2. Remove the left dash panel by the fuse box.

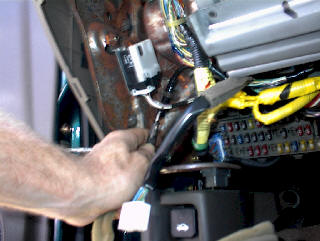

3. Disconnect the antenna lead, located at the side by the fuse box. There
    is a junction here that goes from the fuse box to the radio.

4. Pull antenna cable back to opening going out of the car behind fuse
    block.

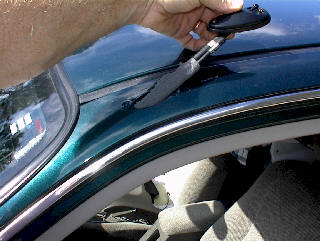

5. Pull old antenna and cable from top of car roof about 6" then cut the old
    antenna lead and tape new lead to end of the cut lead (use a good
    quality electric tape).

6. Gently pull the old antenna cable from inside car from behind the fuse
    box and pull through opening and back to radio connector and plug
    back in.

7. Tighten two screws on the outside and put your inside panel back
    together.
